Window Air Conditioner

Hey Guys;

Hi, guys now we are going to discuss window air condition system. So every air condition system will provide cool air into the room and it is split into many types in that the window air conditioner. At first, the window air conditioner is used by many people but now it is decreased a lot. Now very fewer people are using this system. The manufacturing companies stop manufacturing the window air condition system, why because many new technologies have emerged that the window air conditioner system. Now we will see the window air condition system.

A simple air-conditioner system without ducts, assembled inside a casing suitable for installation on windows or wall openings is called a window air conditioner. The unit consists of a vapor-compression refrigeration system, a double shaft motor, a blower, a fan, air filter, supply air grill, return air grill, fresh air damper, drain tray, and a control panel is the parts of the window air condition system. Now we will see how the window air conditioner is working. At first, the blower sucks the warm air from the room through the air filter and the evaporator or cooling coil of the refrigeration system. Then, it delivers the cooled and dehumidified air back into the room through the supply air grill. The moisture condensing out when the inlet air is passed over the evaporator coil is drained out. The operation of the refrigeration system is the same as the other refrigeration system. The supply air grills have adjustable louvers or deflectors for changing the direction of air upwards or downwards or horizontally. Mechanized louvers are available in some of the window air conditioners which continuously change the direction of the air flow to ensure uniform distribution of conditioned air inside the room. The conditioned air sent into the room mixes with the room air and decreases the temperature and humidity level in the room and thereby maintains human comfort inside the room. Fresh air is admitted through the adjustable damper for the purpose of ventilation.

Window air conditioner usually operates on 230 V, Single phase ac supply and are available in cooling capacities ranging from 0.5 TR to 3 TR. Their installation is so simple and does not require any plumbing work. However, they are not suitable for large halls and application where the heat and moisture loads are very high. In such cases, central air-conditioning systems are preferred.

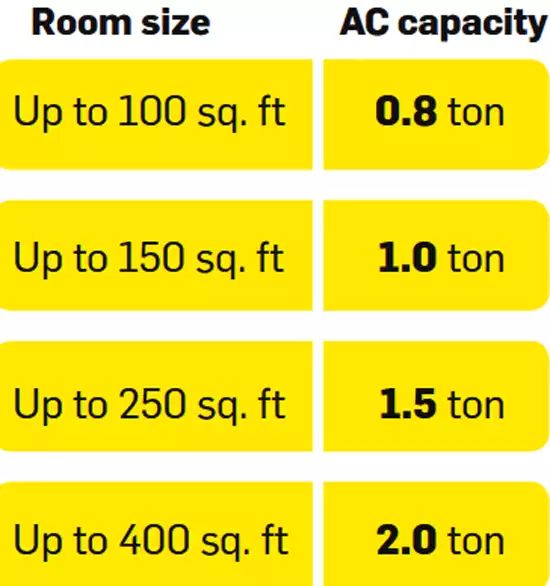

This is the thing we want to note before installation of ac in our room.
